CWR‑40B

On the Outside

80-Character OLED Panel

The OLED display panel provides excellent contrast for improved visibility. It also provides improved temperature stability.

20-Position Keypad

The OLED display panel and Keypad allow an onsite user to fully access the device without using a PC. Access is protected by an 8-digit Passcode.

4 Front Panel LEDs

LEDs are used to indicate Power, Active Alarm, Alarm Message transmission and user login status.

USB Host Port

A user-selected range of Event Records can be quickly saved to a USB Flash Drive. Reports can be digitally signed to provide 100% data integrity. The port can also be used to perform software updates, and saving and restoring of the Setup Database.

20 Digital Inputs

All Digital Inputs are fully isolated by optical means. On/off conditions are 9 to 36Vdc and 0 to 1Vdc, respectively.

Detachable Connectors

All input, power and relay connectors are detachable for ease of installation. Tension clamp connectors are used throughout.

GPS Receiver (opt.)

Without user intervention, the internal real-time clock (RTC) can be kept 100% accurate by using the GPS Receiver option. The option comes with an external, ruggedized antenna.

Dual Ethernet Ports

Both ports operate concurrently and independently. They can be accessed locally or remotely via cell modem or direct connection to a LAN/WAN.

4 Analog Inputs

Positive and negative DC and AC voltages are continuously monitored by the Analog Inputs. Separate user-defined High and Low Limit Values are used to identify abnormal conditions.

Relay Output

User-programmed Virtual Inputs control the operation of the Relay Output. It can be used to provide an external indicaton of a fault or failure condition.

BN Power

Typical battery power can be used to power the device. Its operating range is 9 to 36Vdc. The internal power supply is fully isolated.

Small Mounting Footprint

The Event Recorder's small mounting footprint and weight makes it useful in portable study applications.

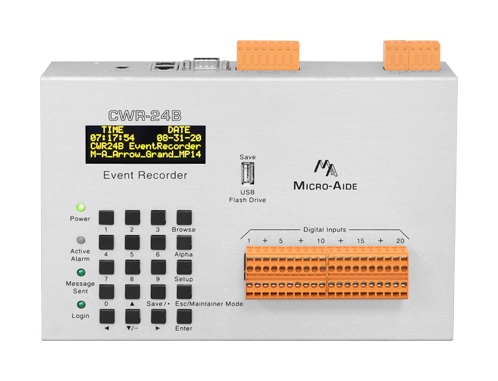

CWR-24B Front View
CWR‑24B - Front View

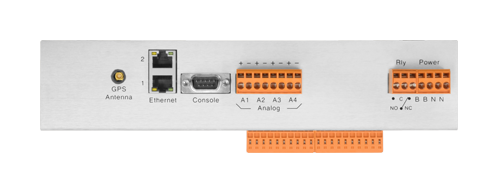

CWR-24B Top View
CWR‑24B - Top View

CWR‑24B Documentation

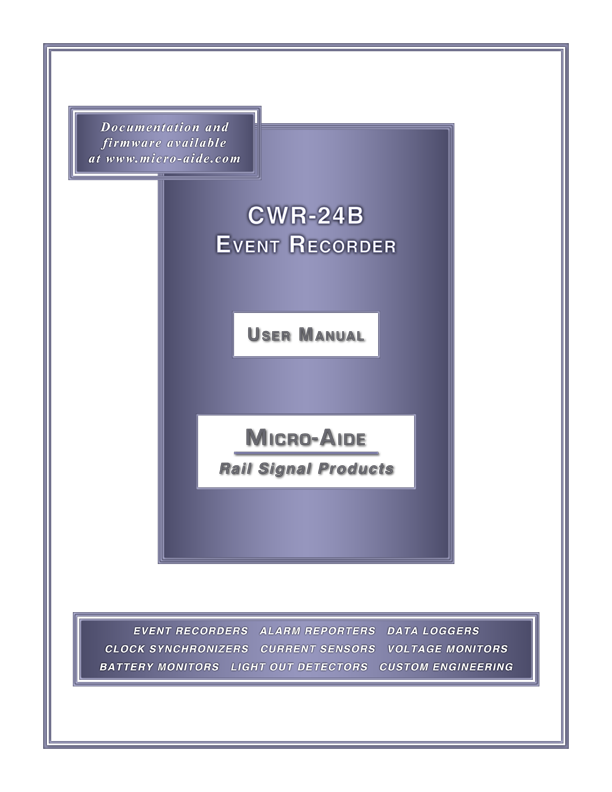

CWR-24B User Manual
View User Manual

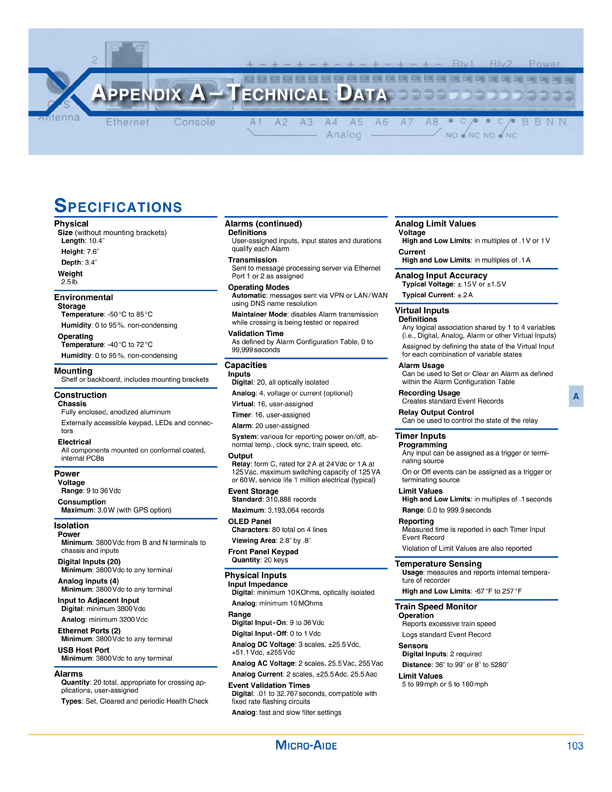

CWR-24B Specifications
View Specifications

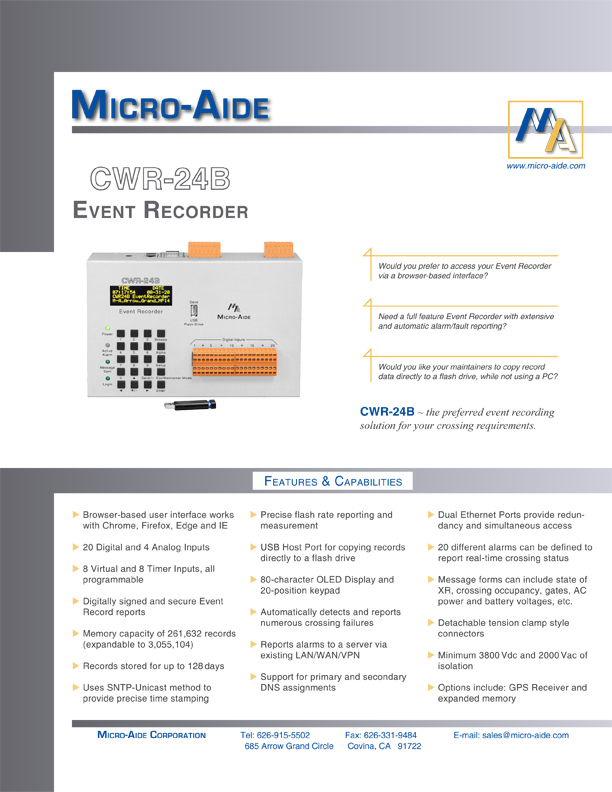

CWR-24B Datasheet
View Datasheet

On the Inside

Ethernet Ports Send Alarm Messages

Either Ethernet Port can be used to provide Alarm messaging to the customer's back-of-house server. The HTTP-Get method is employed for the transmission of Alarm messages.

20 Programmable Alarm Conditions

Alarms can be programmed to report the logical condition and time duration of any potential fault or failure condition.

Reports Numerous Crossing Fault Conditions

Alarms can be programmed to indicate short and long duration power outages, gate up and down problems, active crossing duration, etc.

Provides Periodic Health Check Messages

At pre-set intervals the device will transmit messages that confirm the viability of the device and supporting network.

Supports LAN/WAN-Based Applications

In cases where a LAN, WAN or VPN is available, a direct connection to the network provides remote access. A cell modem is not required.

Non-Volatile Memory With No Internal Batteries

Event Records and the Setup Database are retained indefinitely, even when power is not applied. There are no batteries or other consumables to replace.

100% Accurate Clock (via SNTP)

Both Ethernet Ports implement the SNTP-Unicast protocol. This allows the device's RTC to be kept 100% accurate by periodic communications with a network accessible time server.

Maintainer Mode Disables Alarm Reporting

While Maintainer Mode is enabled the sending of Alarm messages can be temporarily suspended. This can be useful when the crossing is being tested or repaired. As a precaution, Maintainer Mode is automatically disabled after a user-defined interval. After the time-out, Alarm message transmission is resumed.

16 Programmable Virtual Inputs

Logical conditions among any 4 Digital, Analog, Alarm or other Virtual Inputs are automatically detected using the Virtual Input feature. They can be very useful in precisely defining an Alarm condition.

16 Programmable Timer Inputs

The duration between any 2 events can be measured and reported as an Event Record. User-defined High and Low Limit Values can be used to detect abnormally long or short durations.

Internal Temperature Sensor

The internal temperature of the device is continuously monitored. Excessively hot or cold conditions are logged to memory as Event Records.

Up to 128 days of Event Storage

Irrespective of how many days are saved in memory, after the memory is filled new data automatically overwrites the oldest data. Similarly, the 129th day overwrites the first day.

310,888 Event Record Storage Capacity (exp.)

Memory can be optionally expanded to 3,193,064 Event Records.

Events Time Stamped to .001 sec.

Time stamping at 1/1000th of a second can be useful when monitoring high speed or short duration electronically generated signals.

Tamperproof Event Records

At the user's discretion, an Event Record report can be digitally signed. The signature can be used to detect alterations of the report.

Flash Rate Reporting and Measurement

This feature can be used to precisely measure the flash rate. Additionally, the flash rate is reported in each Event Record when flashing is present.
