CWR‑272A

On the Outside

80-Character LCD

The LCD and Keypad allow an onsite user to fully access the device without using a PC. Access is protected by an 8-digit Passcode.

20-Position Keypad

The LCD and Keypad allow an onsite user to fully access the device without using a PC. Access is protected by an 8-digit Passcode.

3 Front Panel LEDs

LEDs are used to indicate power, Terminal Port and Modem activity.

USB Host Port

A user-selected range of Event Records can be quickly saved to a USB Flash Drive. Both text and GEA-version records are saved.

Std. 19" Rack Mount

23" rack mounting adapters are available upon request. Approximately 10.5" of vertical rack space is required.

BN Power

Typical battery power can be used to power the device. Its operating range is 9 to 36Vdc. The internal power supply is fully isolated.

2 Relay Outputs

User-programmed Virtual Inputs control the operation of the Relay Outputs. They can be used to provide an external indicaton of a fault or failure condition.

2 Serial Terminal Ports

Baud rates from 300 to 115,200 are supported. The default Baud rate is 38,400. The Terminal Ports can be used with a USB-to-serial adapter.

GPS Receiver (opt.)

Without user intervention, the internal real-time clock (RTC) can be kept 100% accurate by using the GPS Receiver option. The option comes with an external, ruggedized antenna.

Ethernet Port

The Ethernet Port allows remote users to access the device via a LAN connection. Additionally, if a time server is accessible it can be used to maintain 100% RTC accuracy.

USB Device Port

The USB Device Port provides a very high speed alternative to the serial Terminal Ports. It is crucial for PC's lacking a serial comm port and when a USB-to-serial adapter is not available.

Internal Modem (opt.)

The internal Modem option can be used with a typical land line to provide remote access. Access is restricted by means of a user-defined password. It supports speeds up to 33,600 Baud.

256 Digital Inputs

All Digital Inputs are fully isolated by optical means. On/off conditions are 9 to 36Vdc and 0 to 1Vdc, respectively.

16 Analog Inputs

Positive and negative DC and AC voltages are continuously monitored by the Analog Inputs. Separate user-defined High and Low Limit Values are used to identify abnormal conditions.

Detachable Connectors

All input, power and relay connectors are detachable for ease of installation. A combination of tension clamp and screw-down connectors are used throughout.

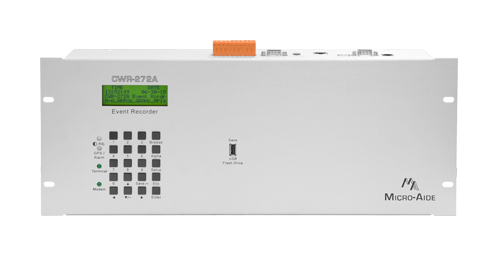

CWR-272A Front View
CWR‑272A - Front View

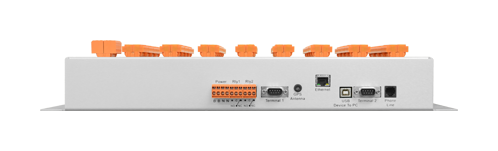

CWR-272A Top View
CWR‑272A - Top View

CWR‑272A Documentation

CWR-272A User Manual
View User Manual
CWR-272A Specifications
View Specifications
CWR-272A Datasheet
View Datasheet

On the Inside

Up to 128 days of Event Storage

Irrespective of how many days are saved in memory, after the memory is filled new data automatically overwrites the oldest data. Similarly, the 129th day overwrites the first day.

147,480 Event Record Storage Capacity (exp.)

Memory can be optionally expanded to 2,474,520 Event Records.

Events Time Stamped to .01 sec.

Time stamping at 1/100th of a second can be useful when monitoring high speed or short duration electronically generated signals.

Non-Volatile Memory With No Internal Batteries

Event Records and the Setup Database are retained indefinitely, even when power is not applied. There are no batteries or other consumables to replace.

Clock Accuracy ±8 sec. per Month (std.)

Even in the absence of clock synchronization the RTC is highly accurate. The clock will continue to run with a loss of power of up to 30 days duration.

100% Accurate Clock (via SNTP)

The GPS Receiver option and Ethernet Port can be used to maintain 100% accuracy of the RTC. Using the Ethernet Port for this purpose requires an accessible time server.

Automatic Coding Detection and Reporting

All Digital Inputs are capable of reporting a Coding Event. Coding states are uniquely labeled in the Event Record.

Precise Coding Rate Measurement

The Measure Flash Rate feature, common to all CWR devices, can be used to determine the exact number of code pulses per minute.

Tamperproof Event Records

At the user's discretion, an Event Record report can be digitally signed. The signature can be used to detect alterations of the report.

16 Programmable Virtual Inputs

Logical conditions among any 4 Digital, Analog or other Virtual Inputs are automatically detected using the Virtual Input feature. These conditions, that may be of special interest to the user, are logged to memory as Event Records.

4 Programmable Train Speed Monitors

The monitors calculate the average front-of-train speed. A user-defined Limit Value is used to report excessive speed.

Internal Temperature Sensor

The internal temperature of the device is continuously monitored. Excessively hot or cold conditions are logged to memory as Event Records.
